3/4 IN DRY RECONNECTABLE BREAKAWAY | OPW

• UL and ULC listed for use in gasoline, ethanol blends up to 25% (E25), diesel, and biodiesel blends up to 20% (B20).
• Pull Force – the 68EZR will break away with a pull force of no more than 350 lbs.
• Unique Double-Poppet Design –features low pressure drop.
• Coupling Halves – protected by proven plastic sleeves.
• Easily Reconnected – features “Push-Twist-Click” technology; simply realign the valve, push in and then twist until you hear the audible click.
• Cold weather compatible
• Reconnection force of approximately 7 lbs.
• Line Shock – the OPW 68EZR is able to absorb the effects of normal line shock through the unique design of the disconnecting features.
• 50 psi (3.45 bar) maximum allowable operating pressure.

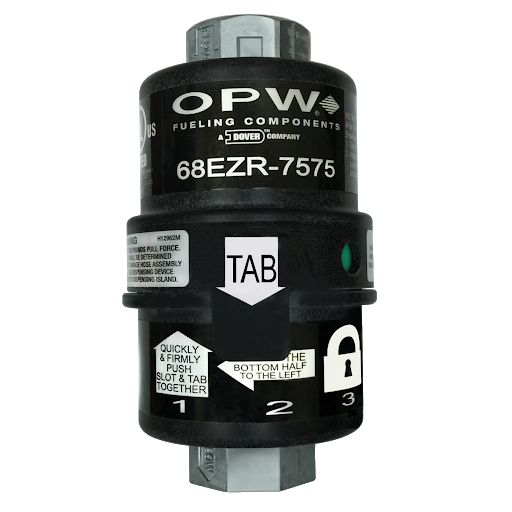

3/4″ 68EZR

• Body: Die-cast zinc, Zamak
• Protective Sleeves: Zytel
• Main Seals: Viton®
• Main Spring: Stainless steel
• Guide and Poppets: Acetal/Delrin
